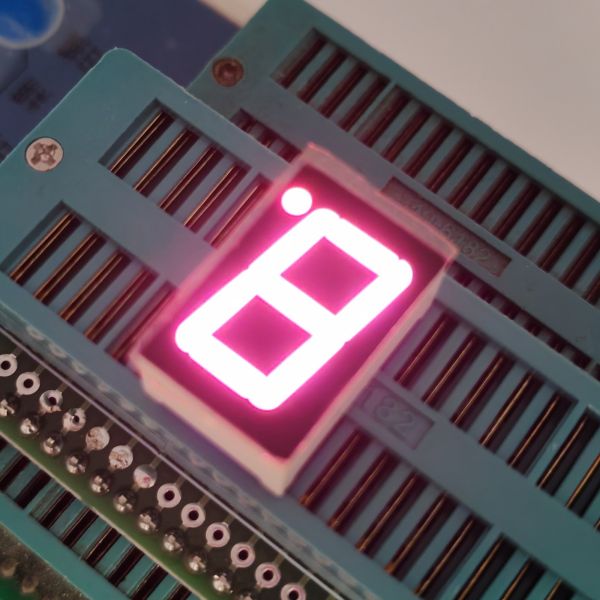

Ultra bright Pink 14.2mm (0.56") Single Digit 7 Segment LED Display Common cathode for Digital Indicator
Product descriptions:
Package dimension: 12.6*19*8mm
Character height: 14.2mm (0.56 INCH)
Polarity: common cathode
Colour: ultra bright pink
Face colour: black
X&Y: 0.29-0.31
Luminous intensity: 100-120mcd/led
Forward voltage: 2.8-3.2V
Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 90 | | 100 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 620 | | 625 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.0 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 100 | | 120 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 470 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Product features:
OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant
Applications:
Widely used for audio equipment or instrument panels, digital indicators and numeric displays, digital clock indicators,digital counters, digital read-out display panels and so on.
