Product Description

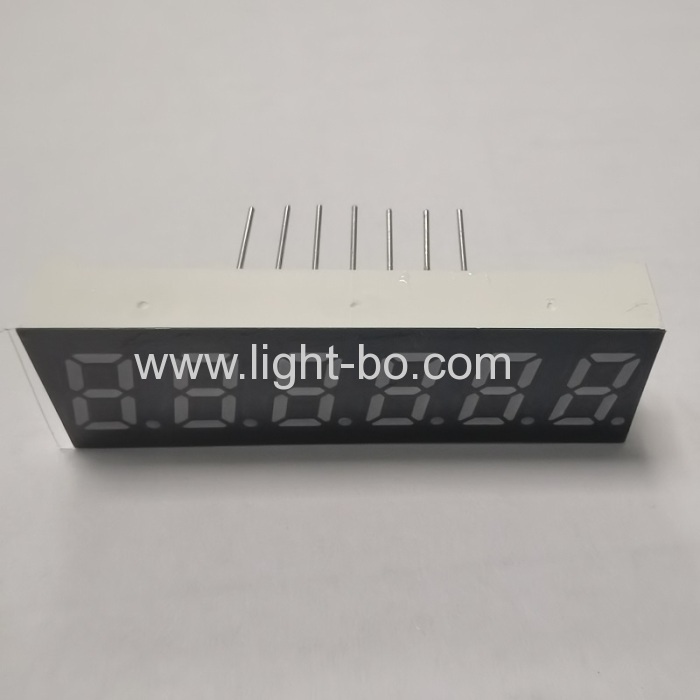

Green small size 6 Digit 7 Segment LED Display common anode for frequency converter

Color:Pure Green

Code:Yellow Green- J/JU

Code:Amber/Yellow -Y

Code:Orange -F

• Absolute Maximum Ratings(Ta=25℃)

• Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+120	℃
  Storage Temperature Range	Tstg	-40~+120	℃
  Solder Temperature(3 sec)	Th	260	℃

• Specifications:

• Display: 6 digit, 0.31 inch 7 segment led display

• Charcter height: 8mm (0.31 inch)

• Outer dimensions: 40*12.5*6.25MM

• white segments black surface

• With common cathode

• Emitting color: Green

• Luminous intensity: 50-60 mcd

• Forward voltage: 1.8-2.2V/led

• Forward current:5-10mA/led

• Colors: red, blue, yellow green, pure green, amber, orange and pure white

•


• Applications:

• Audio equipments or instrument panels

  Home electronic appliances

  Numeric displays

  Multimedia products

  General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

​
