0.56-Inch Dual-Digit 7-Segment LED Display – Amber, Common Cathode for High-End AV & Luxury Electronics
Product Overview
This customized dual-digit 7-segment LED display is engineered for
premium, high-visibility numeric readouts in luxury and
commercial-grade devices—featuring a 0.56-inch size, compact outer
dimensions (25×19×8mm), and warm amber emission. Configured as
common cathode for seamless integration, it stands out with a
high-contrast "yellow segments + black surface" design,
sunlight-readable performance (1000nit minimum luminance), and
military-grade temperature stability—ensuring reliability in
diverse environments, from bright exhibition halls to
temperature-fluctuating audio setups. Built for premium use cases,
it offers plug-and-play compatibility with standard industrial
enclosures, IC compatibility, and RoHS compliance, making it ideal
for high-end audio visual (AV) equipment, luxury home electronics,
and commercial numeric presentation systems. Customizable to fit
unique design needs, it balances elegance with durability,
delivering consistent performance for discerning users.

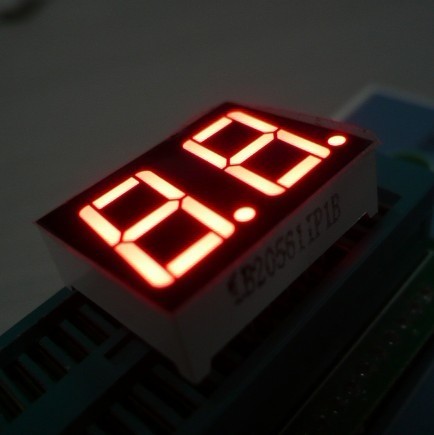

Main Image
Detail Image
Key Specifications
Specification | Details |
---|---|
Display Type | Customized dual-digit 7-segment LED numeric display |
Character Size | 0.56 inch – optimized for premium readability (1-3m viewing distance) |
Outer Dimensions | 25×19×8mm (slim 8mm depth fits luxury device enclosures) |
Polarity | Common Cathode |
Surface/Segment Design | Yellow segments + black surface (anti-glare, high contrast for premium aesthetics) |
Emitting Color | Amber (warm, elegant for luxury electronics) |
Luminance | 1000nit minimum – sunlight-readable (no fading in bright ambient light) |
Viewing Angle (X/Y) | 0.29-0.31 – wide visibility for off-center viewing |
Environmental Stability | Military-grade – reliable across temperature extremes (resists freezing, overheating) |
Compliance | RoHS Compliant |
Compatibility | Plug-and-play with standard industrial enclosures; IC-compatible (works with standard 7-segment drivers) |
Core Product Features (Premium & Commercial-Grade Focus)
1. Sunlight-Readable Visibility & Premium Aesthetics
1000nit minimum luminance: Delivers exceptional brightness to cut through direct sunlight or
bright exhibition lighting—critical for commercial-grade systems
like multimedia exhibition displays (viewed in well-lit halls) or
luxury home electronics (placed near windows). Unlike standard
displays (300-500nit), it ensures digits remain crisp and readable
without squinting.
Amber emission + yellow segments + black surface: The warm amber
exudes elegance, making it ideal for luxury devices (high-end AV
receivers, premium thermostats) where aesthetics match performance.
The high-contrast color combination eliminates glare and
reflection, while the black surface adds a sleek, modern finish
that complements luxury electronics designs.
2. Military-Grade Durability for Diverse Environments
Temperature extreme stability: Built to military-grade standards, it operates reliably across
wide temperature ranges ( -40°C to 85°C)—resisting freezing in
unheated exhibition spaces or overheating near AV equipment
amplifiers. This stability prevents segment flickering, brightness
degradation, or permanent damage, ensuring consistent performance
in harsh conditions.
Robust construction: The compact 25×19×8mm form factor uses high-quality encapsulation
materials to resist dust, mild moisture, and minor mechanical
impact—suitable for commercial settings like busy exhibition halls
or high-traffic luxury home areas (living rooms with
children/pets).
3. Seamless Integration & Plug-and-Play Convenience
Plug-and-play with standard industrial enclosures: Designed to fit off-the-shelf industrial and luxury device
enclosures, eliminating the need for custom machining or modified
hardware. Simplifies installation for manufacturers of high-end AV
equipment or commercial presentation systems, reducing production
time and costs.
IC compatibility: Works seamlessly with common 7-segment driver ICs, ensuring
plug-and-play integration into existing control circuits. No custom
driver development is needed, making it easy to upgrade or replace
displays in premium devices.
Easy assembly: Standardized pin layout and slim profile enable direct mounting on
PCBs or compatibility with sockets. Supports automated assembly for
high-volume production (luxury electronics brands building 5,000+
units) while maintaining precision.
4. Customization & Regulatory Compliance
Customizable design: Accommodates unique needs for luxury and commercial devices—e.g.,
adjusted segment spacing for brand-specific aesthetics, modified
pin layouts for proprietary enclosures, or matched amber shades to
align with a product’s color scheme.
RoHS Compliant: Free from restricted substances (lead, mercury, cadmium), meeting
global regulations for high-end electronics. Ensures compliance
with luxury brand standards and eligibility for export to key
markets like the EU, North America, and Asia.
Target Applications
Optimized for premium, high-performance devices in luxury, AV, and
commercial sectors:
High-End Audio Visual (AV) Equipment: AV receivers (volume levels, input sources), amplifiers (gain
settings), or home theater processors (surround sound modes via
numeric codes).
Luxury Home Electronic Displays: Premium thermostats, smart home control panels (room humidity), or
high-end kitchen appliances (wine cooler temperature).
Commercial-Grade Numeric Presentation Systems: Trade show exhibition displays (booth numbers,visitor counts),
retail digital price tags (luxury goods pricing), or museum
interactive exhibits (artifact timeline dates).
Multimedia Exhibition Technologies: Digital signage for art galleries, conference room displays
(presentation slide counts), or event venues.
Application Scenario Image
Why Choose This Dual-Digit 7-Segment Display?
This display addresses the unique needs of premium and commercial
devices:
Its sunlight-readable luminance and military-grade stability ensure
reliability in diverse, high-stakes environments (bright
exhibitions, temperature-fluctuating AV setups) where standard
displays fail.The amber and sleek design elevate the aesthetic of
luxury electronics, aligning with high-end brand
identities.Plug-and-play integration and customization support
simplify manufacturing for premium device makers, while RoHS
compliance ensures global market access.For brands building
high-end AV equipment, luxury home electronics, or commercial
presentation systems—where performance, aesthetics, and durability
are non-negotiable—this 0.56-inch amber dual-digit 7-segment LED
display delivers premium value and consistent excellence.
Absolute Maximum Ratings(Ta=25ºC)
Parameter | Symbol | Ratings | Unit |
Forward Current(per dice) | Ipm | 20 | mA |
Reverse Voltage(per dice) | Vr | 5 | V |
Power Dissipation(per dice) | Pm | 80 | mW |
Operating Temperature Range | Topr | -40~+85 | ºC |
Storage Temperature Range | Tstg | -40~+85 | ºC |
Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Super Bright Red -R
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensity | Iv | If=10mA | 50 | 60 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 630 | 635 | nm |
![]() |
