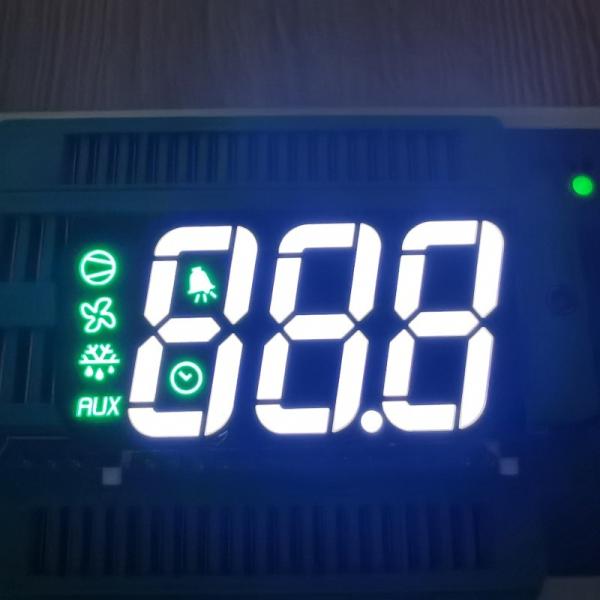

Ultra White Triple Digit LED Display for Refrigerators

• • Customized 3 digit 7 segment led display

  •


  • Digit height: 17mm (0.67inch)

  •


  • 37.9 x 20.45 x 5.75mm

  •


  • Polarity: common anode

  •


  • Emitting colour: white / pure green


  • Forward volatege per led:2.8-3.2V per led

  • Forward current: 5-10mA/led

  •


  • White segments and black surface with yellow diffused film

  • Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour


  • Absolute Maximum Ratings(Ta=25ºC)

    Parameter	Symbol	Ratings	Unit
    Forward Current(per dice)	Ipm	20	mA
    Reverse Voltage(per dice)	Vr	5	V
    Power Dissipation(per dice)	Pm	80	mW
    Operating Temperature Range	Topr	-40~+85	ºC
    Storage Temperature Range	Tstg	-40~+85	ºC
    Solder Temperature(≤3 seconds)	Th	260	ºC



    Code:Yellow Green- J

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	1.8		2.4	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	30		40	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	569		574	nm





    Code:Amber/Yellow -Y

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	1.8		2.5	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	60		80	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	585		595	nm





    Code:Orange -F

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	1.8		2.4	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	60		80	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	600		605	nm





    Code:Super Bright Red -R

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	1.8		2.2	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	50		60	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	630		635	nm





    Code:Ultra Bright Red -UR

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	1.8		2.2	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	80		100	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	625		635	nm





    Code:Pure Green -G

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	2.6		3.2	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	120		180	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	515		525	nm




    Code:Ultra Bright Blue -BH

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	2.8		3.2	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	120		140	mcd
    Spectrum With Of Half Value	△λ	If=10mA		20		nm
    Wavelength	Dλ	If=10mA	460		465	nm


  •


  • Code:Ultra Bright White -WH

    Parameter	Symbol	Condition	Min	Typ	Max	Unit
    Forward Voltage	Vf	If=10mA	2.8		3.2	V
    Reverse Voltage	Vr	Ir=10uA	5			V
    Luminous Intensty	Iv	If=10mA	120		140	mcd
    LED color Temperature	K	If=10mA	5500	20	6800	K
    Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm



  • High luminous intensity and reliability

  • Low power consumption

  • Stable performance

  • Long lifetime

  • Easy assembly

  • IC compatible

  • Certificate: RoHS

  •


  • Applications:

  • Home electronic appliances, air conditioner control,refrigerator indicators,refrigerator control ,cooling control,heating control,and so on.
