Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode

Product Categories
Shenzhen Guangzhibao Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode from wholesalers

    Buy cheap Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode from wholesalers
    • Buy cheap Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode from wholesalers
    • Buy cheap Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode from wholesalers

    Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode

    Ask Lasest Price
    Brand Name : LIGHT-BO
    Model Number : LB50563LR1B
    Certification : ISO9001&RoHS
    Price : Negotiate
    Payment Terms : TT in advance
    Supply Ability : 50000pcs/days
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

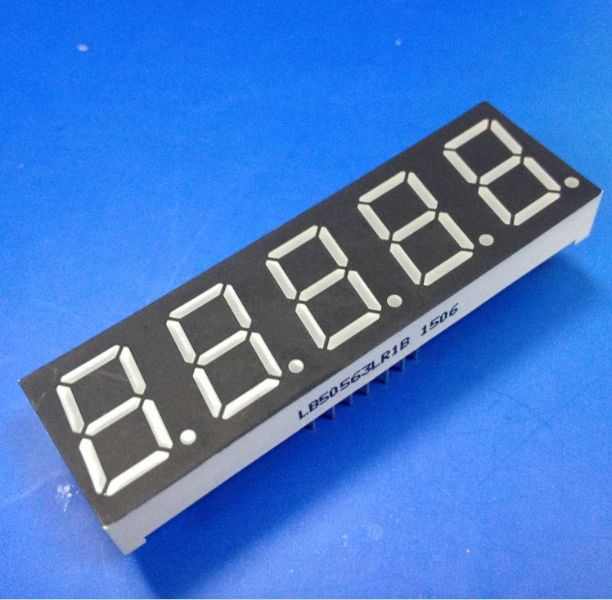

    Super Bright Red 14.2mm 5 Digit 7 Segment LED Display Common Cathode

    Product Description

    Super bright red 14.2mm 5 Digit 7 Segment LED Display Common cathode for digital indicator

    • Specifications:

    • Display: 5 digit, 0.56 inch 7 segment led display

    • Charcter height: 14.2mm (0.56 inch)

    • Outer dimensions: 63*19*8mm

    • white segments black surface

    • With common cathode

    • Emitting color: super bright red

    • Luminous intensity: 50-60 mcd

    • Forward voltage: 1.8-2.2V/led

    • Forward current:5-10mA/led

    • Colors: red, blue, yellow green, pure green, amber, orange and pure white

    • Absolute Maximum Ratings(Ta=25ºC)

      ParameterSymbolRatingsUnit
      Forward Current(per dice)Ipm20mA
      Reverse Voltage(per dice)Vr5V
      Power Dissipation(per dice)Pm80mW
      Operating Temperature RangeTopr-40~+85ºC
      Storage Temperature RangeTstg-40~+85ºC
      Solder Temperature(≤3 seconds)Th260ºC

      Code:Super Bright Red -R

      ParameterSymbolConditionMinTypMaxUnit
      Forward VoltageVfIf=10mA1.82.2V
      Reverse VoltageVrIr=10uA5V
      Luminous IntenstyIvIf=10mA5060mcd
      Spectrum With Of Half Value△λIf=10mA20nm
      WavelengthDλIf=10mA630635nm

      Code:Ultra Bright Red -UR

      ParameterSymbolConditionMinTypMaxUnit
      Forward VoltageVfIf=10mA1.82.2V
      Reverse VoltageVrIr=10uA5V
      Luminous IntenstyIvIf=10mA90100mcd
      Spectrum With Of Half Value△λIf=10mA20nm
      WavelengthDλIf=10mA620625nm

      Code:Ultra Bright Blue -BH

      ParameterSymbolConditionMinTypMaxUnit
      Forward VoltageVfIf=10mA2.63.0V
      Reverse VoltageVrIr=10uA5V
      Luminous IntenstyIvIf=10mA100120mcd
      Spectrum With Of Half Value△λIf=10mA20nm
      WavelengthDλIf=10mA460470nm

    • High luminous intensity and reliability

    • Low power consumption

    • Extremely low current

    • Stable performance

    • Long lifespan

    • Easy-to-assemble

    • IC compatible

    • Meet RoHS Compliant


    • Industrial Equipment

      Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
