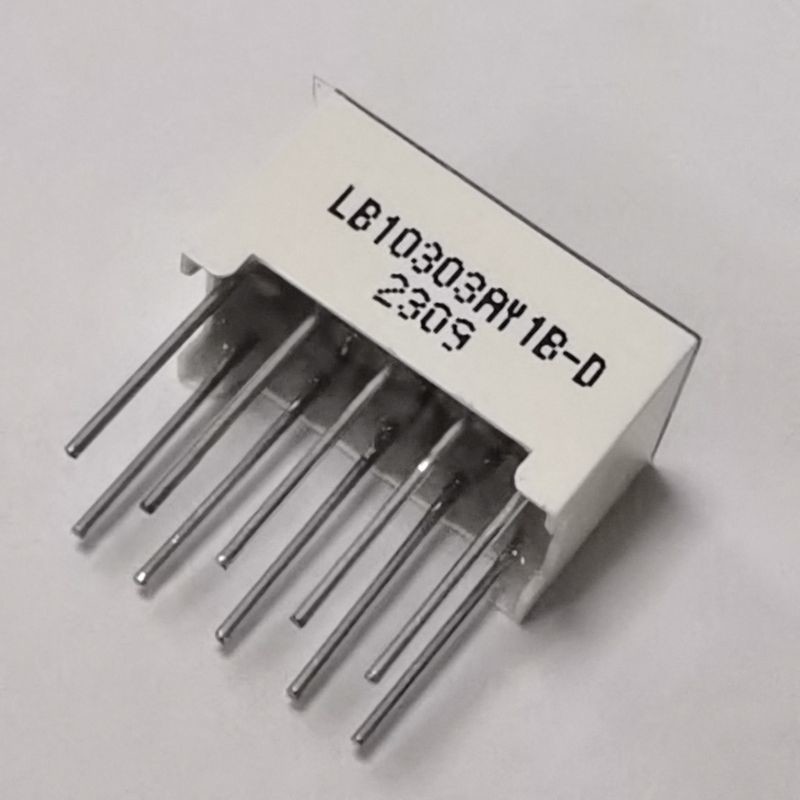

    Amber color 7.62mm Single Digit 7 Segment LED Display common anode

    Ask Lasest Price
    Brand Name : LIGHT-BO
    Model Number : LB10103AY1B
    Certification : ISO9001&RoHS
    Price : Negotiate
    Payment Terms : T/T,Western Union
    Supply Ability : 50000 PCS/Day
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Amber color 7.62mm Single Digit 7 Segment LED Display common anode

    Amber color 7.62mm Single Digit 7 Segment LED Numeric Display common anode


    Product Descriptions:
    Colour:Super bright amber
    Face Colour:Black
    Luminous intensity:60-70mcd/dice
    Forward voltage:1.8-2.4V/led
    Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow


    Absolute Maximum Ratings(Ta=25ºC)

    ParameterSymbolRatingsUnit
    Forward Current(per dice)Ipm20mA
    Reverse Voltage(per dice)Vr5V
    Power Dissipation(per dice)Pm80mW
    Operating Temperature RangeTopr-40~+85ºC
    Storage Temperature RangeTstg-40~+85ºC
    Solder Temperature(≤3 seconds)Th260ºC


    Code:Amber/Yellow -Y

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.5V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA60
    80mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA585
    595nm


    Product Features:
    OEM and ODM orders are accepted
    High luminous intensity and reliability
    Big viewing angle
    Stable performance
    Long lifetime
    Easy assembly
    IC Compatible
    RoHS directive-compliant
    Applications:
    Widely used for audio equipments or instrument panels, digital indicators and numeric displays ,digital clock indicators,digital counters, digital read-out display panels and so on .
