Product Description

• Key Specifications/Special Features:

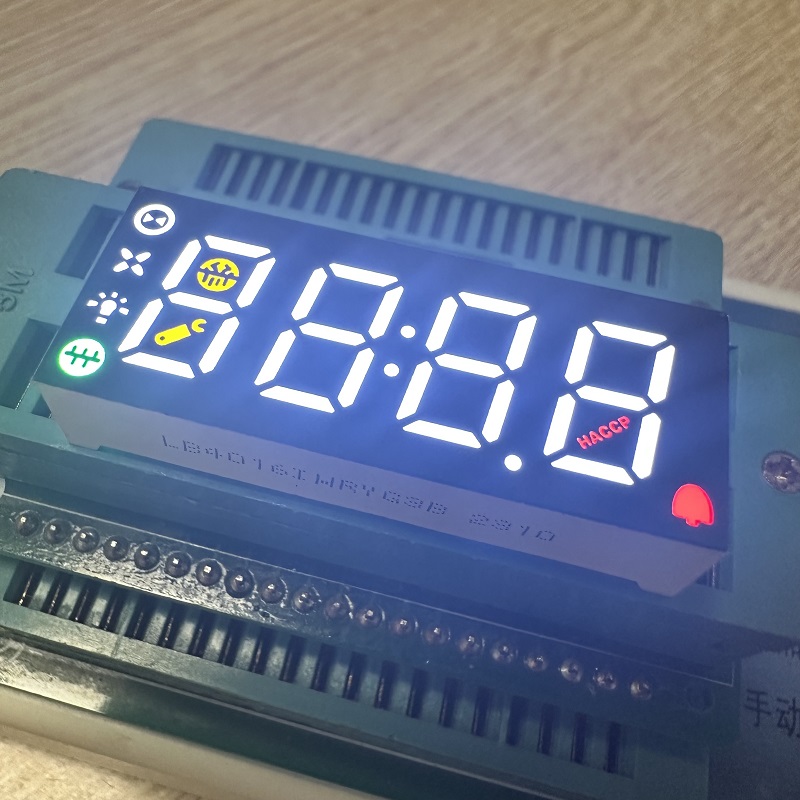

• Multi-colour triple digit 7 segment led display

• Character height: 10.9mm (0.43 inch)

• Outer dimensions: 40*16*8mm

• Polarity: common Cathode

• LED color: Ultra bright white / yellow / red/pure green

• Made With yellow segments and black surface with film

• Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour.

•

•

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm




  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm




  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm




  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm




  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm




  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•


• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

• High luminous intensity and reliability

• Low power consumption

• low current

• Stable performance

• Long lifetime

• Easy assembly

• IC compatible

• Certificate: RoHS

•


• Applications:

• -- Audio Equipment or instrument panels;

  -- General using for digital indicators;

  -- Multimedia products;

  -- Bank exchange rate display;

  -- LED clock display;

  -- Display for gas station and other various display areas of equipment/machine.

Shenzhen Guangzhibao (Light-Bo) Technology Co. Ltd is specialized in LED products, including LED 7 segment numeric displays, alphanumeric LED displays,dot-matrix LED Displays, SMD LEDs, LED lamps,LCD backlights,LED light bar, bar gragh arrays and LED direction indicator displays and more.
We offer top quality products at competitive prices to meet different requirement for industry applications. We introduced computerized operation system and complete QC system. Key raw materials are sourced from the US, Japan and Taiwan area, plus,we utilise an array of advanced production equipments from ASM and Risen,such as automatic dice bonding and wire soldering machines . We specialise in offering series of optoelectronic displays in pure green, pure white and ultra blue.All of our products comply with the RoHS Directives. Monthly capacity reaches 3,000,000pcs.
We have been in LED industry for more than 12 years. With more than 10 years OEM and ODM experience, our R&D engineers are at hand for your customization requirements. Samples can be ready in just 10-15 days. Contact us now !
