| Brand Name : | LIGHTBO |
| Model Number : | LB8928LWB1B |
| Certification : | RoHS&SGS&ISO9100 |
| Price : | Negotiation |
| Payment Terms : | TT in advance& Western Union |
| Supply Ability : | 50000PCS/Day |
| Delivery Time : | 15-20Days |

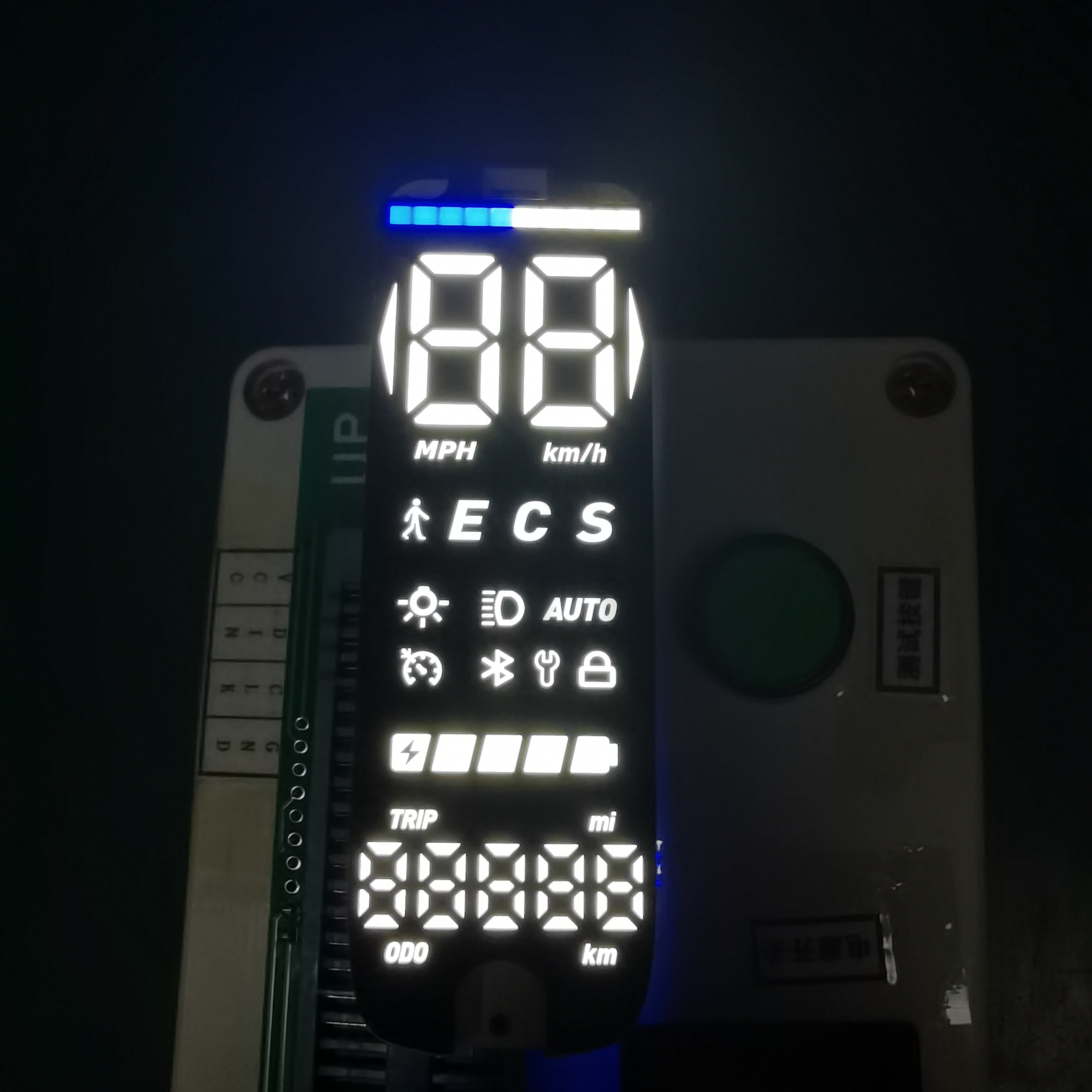

Ultra Bright White Color Multifunction Custom LED Display For Electric Scooter
Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
Code:Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | 3.6 | V | |
| Reverse Voltage | Vr | Ir=40uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 625 | 635 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 100,000hrs. Absolute Maximum Rating at Ta=25℃


|
