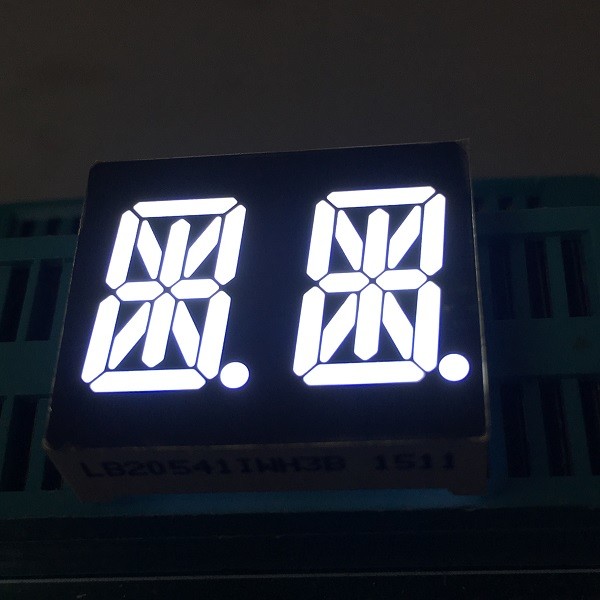

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common
anode For Instrument Panel
Product Description:
Outer dimensions: 25.2*21.1*7.8 mm
Digit height: 0.54 inches (13.8mm)
Polarity: common anode
Colour: Ultra bright white
Made with yellow segments black surface
Emitting colors:Available in red, yellow green, pure green, blue
and white, amber, orange
Product Feature:
1. High luminous intensity and reliability
2. High efficiency
3. Low power consumption
4. Extremely low current
5. Luminous evenly distributed on each segment
6. Big viewing angle
7. Stable performance
8. Long lifespan
9. Easy assembly
10. IC Compatible and Meet RoHS Compliamt
Application:
Widely used in set-top boxes, home appliances and instrument
panels,temperature indicators, humidity indicators,electric meters,
digital indicators and so on .
Why choose us?
1. Key raw materials are sourced from the US, Japan and Taiwan area
2. Full-automation ASM,such as automatic dice bonding and wire
soldering machines
3. Specializing in the production of full range,full color LED
digital tube,especially blue green and white
4. The OEM and ODM experiences has more than 10 years
5. It can be customized that according to customer requirement of
varous size and color
6. Before sale and after sale services are good
7. Stable performance,prices is reasonable,delivery time is quickly
We Promise:
1. Your inquiry related to our products or prices will be replied
in 24 hours.
2. Experienced staffs to answer all your enquires in fluent
English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your
private information.
5. No matter big order or small order , we will provide all the
best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips
and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next
order if it is our mistake.
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:W-Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | | 3.5 | V |
| Reverse Voltage(Per dice) | Vr | Ir=40uA | | 5 | | V |
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | | 120 | mcd |
| Chromaticity Coordinates | X | If=20mA | 0.29 | | 0.33 | nm |
| Chromaticity Coordinates | Y | If=20mA | 0.29 | | 0.33 | nm |
| Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse | Ifp | 100 | mA |
| Operating Temperature Range | Torp | -35℃～+85℃ |
| Storage Temperature Range | Tstg | -35℃～+85℃ |
| SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃ |
| Absolute Maximum Rating at Ta=25℃ |
