    22.0mm Arrow Led Display , Common Anode 7 Segment Display 0.8 inch

    Ask Lasest Price
    Brand Name : LIGHTBO
    Model Number : LB30803IR1B
    Certification : RoHS&SGS&ISO
    Price : Negotiated
    Payment Terms : TT in advance& Western Union
    Supply Ability : 50000PCS/Day
    Delivery Time : 10-15Days
    • Product Details
    • Company Profile

    22.0mm Arrow Led Display , Common Anode 7 Segment Display 0.8 inch

    22.0mm Arrow Led Display , Common Anode 7 Segment Display 0.8 inch

    Product Descriptions:


    High-luminous intensity

    Dight height0.8 inches(22.0mm)
    Quter dimensions43x26x8mm
    PolarityCommon anode
    ColourUltra Bright red
    Emitting colorsRed,Blue,Green,Yellow,Orange,Amber and White



    Product Features:
    1. High-luminous intensity
    2. Low-power consumption
    3. Extremely low-current
    4. Stable performance
    5. Big viewing angle
    6. Long lifespan
    7. Easy mounting on PC boards and sockets
    8. Certification: IC
    9. RoHS Directive-compliant

    Applications:
    Widely used in set-top boxes,oven timer control,home appliances and instrument panel,clock displays,digital timers and so on


    Why choose us?
    1. Your inquiry related to our products will be replied in 24 hours.
    2. Experienced staffs to answer your inquiries in fluent English.
    3. Providing OEM and ODM service for more than 10 years.
    4. Protection of your sales area, ideas of design and all your private information.
    5. No matter big order or small order, we will serve you with best quality and best service.
    6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
    7. If our products have any problem , we will send free in the next order if it is our mistake.

    Absolute Maximum Ratings(Ta=25℃)

    ParameterSymbolRatingsUnit
    Forward Current(per dice)Ipm20mA
    Reverse Voltage(per dice)Vr5V
    Power Dissipation(per dice)Pm50mW
    Operating Temperature RangeTopr-40~+85
    Storage Temperature RangeTstg-40~+85
    Solder Temperature(3 sec)Th260


    Code:W-Ultra Bright White

    ParameterSymbolConditionMinTypMaxUnit
    Forward Voltage(Per dice)VfIf=20mA1.82.3V
    Reverse Voltage(Per dice)VrIr=40uA5V
    Luminous Intensty(Per dice)IvIf=20mA7080mcd
    WavelegnthIf=20mA620625nm
    Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms PulseIfp100mA
    Operating Temperature RangeTorp-35℃~+85℃
    Storage Temperature RangeTstg-35℃~+85℃
    SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
    Absolute Maximum Rating at Ta=25℃

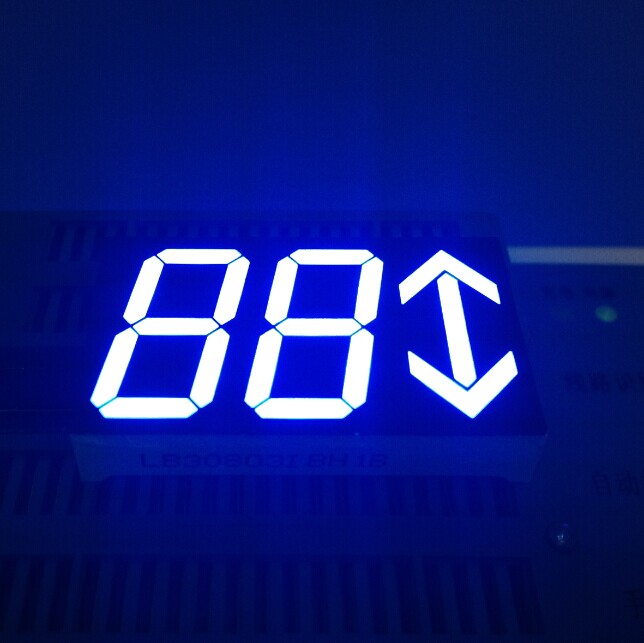

    Product Pictures:
