    Custom LED Display , 0.56 Inch 7 Segment Led Display For Oven Timer

    Ask Lasest Price
    Brand Name : LIGHTBO
    Model Number : LB40569AJ-0S
    Certification : RoHS&SGS&ISO
    Price : negotiable
    Payment Terms : TT in advance& Western Union
    Supply Ability : 50000PCS/Day
    Delivery Time : 10-15Days
    • Product Details
    • Company Profile

    Custom LED Display , 0.56 Inch 7 Segment Led Display For Oven Timer


    Custom LED Display , 0.56 Inch 7 Segment Led Display For Oven Timer


    Product descriptions:


    Package dimension: 58x19x13.5mm
    Working temperature: +120C
    Emitting colour: ultra bright green
    Also available in red , yellow green , pure green , blue , amber , orange

    Product features:


    High luminous intensity
    Low power consumption
    Stable performance
    Continuous uniform segment
    Big viewing angle
    Long lifetime
    Meet RoHS compliant


    Code:J-Ultra Bright Green
    ParameterSymbolConditionMinTypMaxUnit
    Forward Voltage(Per dice)VfIf=20mA1.82.5V
    Reverse Voltage(Per dice)VrIr=10uA5V
    Luminous Intensty(Per dice)IvIf=20mA4050mcd
    Spectrum With Of Half ValueIf=20mA30nm
    WavelengthDIf=20mA569573nm
    Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms PulseIfp70mA
    Operating Temperature RangeTorp-35℃~+85℃
    Storage Temperature RangeTstg-35℃~+85℃
    SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
    Absolute Maximum Rating at Ta=25℃

    Absolute Maximum Ratings(Ta=25℃)
    ParameterSymbolRatingsUnit
    Forward Current(per dice)Ipm20mA
    Reverse Voltage(per dice)Vr5V
    Power Dissipation(per dice)Pm80mW
    Operating Temperature RangeTopr-40~+85
    Storage Temperature RangeTstg-40~+85
    Solder Temperature(3 sec)Th260



    Applications:
    Ideal for home appliances, built-in oven control, multifunction digital oven timer control


    Why choose us?

    1. Your inquiry related to our products will be replied in 24 hours.

    2. Experienced staffs to answer your inquiries in fluent English.

    3. Providing OEM and ODM service for more than 10 years.

    4. Protection of your sales area, ideas of design and all your private information.

    5. No matter big order or small order, we will serve you with best quality and best service.

    6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.

    7. If our products have any problem , we will send free in the next order if it is our mistake.

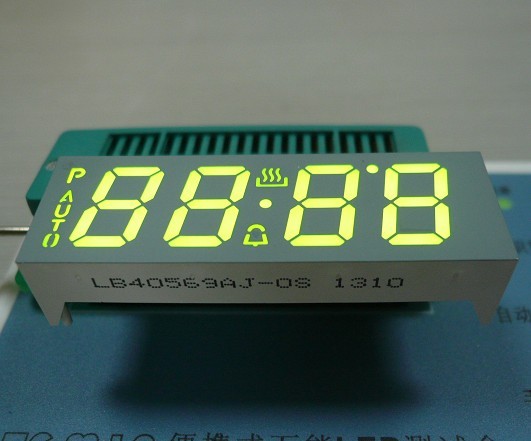

    Product Pictures:

    Quality Custom LED Display , 0.56 Inch 7 Segment Led Display For Oven Timer for sale
